Provisioning on AWS

Quick Installation

Porter runs on a Kubernetes cluster in your own AWS account. You can provision a cluster through Porter by inputting the credentials of your AWS IAM account. You can also delete all resources provided by Porter with one-click.

🚧

Quick Installation uses AdministratorAccess permissions to set up Porter. You can optionally specify the minimum IAM policies for provisioning a cluster and registry.


  1. To create a new user, go to your AWS console and navigate to IAM -> Users and select Add user:

AWS add userAWS add user


  1. Give your user a name and select Programmatic access. After selecting Next, you will be prompted to set permissions for your user, choose Attach existing policies directly and select the AdministratorAccess policy:

AdministratorAccess policy attachmentAdministratorAccess policy attachment

Optionally, if you don't want to grant Porter AdministratorAccess, you can follow these additional steps to configure the minimum required policy (otherwise, skip to step 3).

Permissions for EKS

To instead specify the minimum required policy, select Attach existing policies directly, and click on Create Policy.

Minimum required policy attachmentMinimum required policy attachment

You will be prompted to enter your custom policy. Click on the JSON tab.

Custom policy JSONCustom policy JSON

Copy and paste the below JSON to the field.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "autoscaling:AttachInstances",
                "autoscaling:CreateAutoScalingGroup",
                "autoscaling:CreateLaunchConfiguration",
                "autoscaling:CreateOrUpdateTags",
                "autoscaling:DeleteAutoScalingGroup",
                "autoscaling:DeleteLaunchConfiguration",
                "autoscaling:DeleteTags",
                "autoscaling:Describe*",
                "autoscaling:DetachInstances",
                "autoscaling:SetDesiredCapacity",
                "autoscaling:UpdateAutoScalingGroup",
                "autoscaling:SuspendProcesses",
                "ec2:AllocateAddress",
                "ec2:AssignPrivateIpAddresses",
                "ec2:Associate*",
                "ec2:AttachInternetGateway",
                "ec2:AttachNetworkInterface",
                "ec2:AuthorizeSecurityGroupEgress",
                "ec2:AuthorizeSecurityGroupIngress",
                "ec2:CreateDefaultSubnet",
                "ec2:CreateDhcpOptions",
                "ec2:CreateEgressOnlyInternetGateway",
                "ec2:CreateInternetGateway",
                "ec2:CreateNatGateway",
                "ec2:CreateNetworkInterface",
                "ec2:CreateRoute",
                "ec2:CreateRouteTable",
                "ec2:CreateSecurityGroup",
                "ec2:CreateSubnet",
                "ec2:CreateTags",
                "ec2:CreateVolume",
                "ec2:CreateVpc",
                "ec2:CreateVpcEndpoint",
                "ec2:DeleteDhcpOptions",
                "ec2:DeleteEgressOnlyInternetGateway",
                "ec2:DeleteInternetGateway",
                "ec2:DeleteNatGateway",
                "ec2:DeleteNetworkInterface",
                "ec2:DeleteRoute",
                "ec2:DeleteRouteTable",
                "ec2:DeleteSecurityGroup",
                "ec2:DeleteSubnet",
                "ec2:DeleteTags",
                "ec2:DeleteVolume",
                "ec2:DeleteVpc",
                "ec2:DeleteVpnGateway",
                "ec2:Describe*",
                "ec2:DetachInternetGateway",
                "ec2:DetachNetworkInterface",
                "ec2:DetachVolume",
                "ec2:Disassociate*",
                "ec2:ModifySubnetAttribute",
                "ec2:ModifyVpcAttribute",
                "ec2:ModifyVpcEndpoint",
                "ec2:ReleaseAddress",
                "ec2:RevokeSecurityGroupEgress",
                "ec2:RevokeSecurityGroupIngress",
                "ec2:UpdateSecurityGroupRuleDescriptionsEgress",
                "ec2:UpdateSecurityGroupRuleDescriptionsIngress",
                "ec2:CreateLaunchTemplate",
                "ec2:CreateLaunchTemplateVersion",
                "ec2:DeleteLaunchTemplate",
                "ec2:DeleteLaunchTemplateVersions",
                "ec2:DescribeLaunchTemplates",
                "ec2:DescribeLaunchTemplateVersions",
                "ec2:GetLaunchTemplateData",
                "ec2:ModifyLaunchTemplate",
                "ec2:RunInstances",
                "ecr:*",
                "eks:CreateCluster",
                "eks:DeleteCluster",
                "eks:DescribeCluster",
                "eks:ListClusters",
                "eks:UpdateClusterConfig",
                "eks:UpdateClusterVersion",
                "eks:DescribeUpdate",
                "eks:TagResource",
                "eks:UntagResource",
                "eks:ListTagsForResource",
                "eks:CreateFargateProfile",
                "eks:DeleteFargateProfile",
                "eks:DescribeFargateProfile",
                "eks:ListFargateProfiles",
                "eks:CreateNodegroup",
                "eks:DeleteNodegroup",
                "eks:DescribeNodegroup",
                "eks:ListNodegroups",
                "eks:UpdateNodegroupConfig",
                "eks:UpdateNodegroupVersion",
                "iam:AddRoleToInstanceProfile",
                "iam:AttachRolePolicy",
                "iam:CreateInstanceProfile",
                "iam:CreateOpenIDConnectProvider",
                "iam:CreateServiceLinkedRole",
                "iam:CreatePolicy",
                "iam:CreatePolicyVersion",
                "iam:CreateRole",
                "iam:DeleteInstanceProfile",
                "iam:DeleteOpenIDConnectProvider",
                "iam:DeletePolicy",
                "iam:DeletePolicyVersion",
                "iam:DeleteRole",
                "iam:DeleteRolePolicy",
                "iam:DeleteServiceLinkedRole",
                "iam:DetachRolePolicy",
                "iam:GetInstanceProfile",
                "iam:GetOpenIDConnectProvider",
                "iam:GetPolicy",
                "iam:GetPolicyVersion",
                "iam:GetRole",
                "iam:GetRolePolicy",
                "iam:List*",
                "iam:PassRole",
                "iam:PutRolePolicy",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:TagOpenIDConnectProvider",
                "iam:TagRole",
                "iam:UntagRole",
                "iam:UpdateAssumeRolePolicy",
                "logs:CreateLogGroup",
                "logs:DescribeLogGroups",
                "logs:DeleteLogGroup",
                "logs:ListTagsLogGroup",
                "logs:PutRetentionPolicy",
                "kms:CreateAlias",
                "kms:CreateGrant",
                "kms:CreateKey",
                "kms:DeleteAlias",
                "kms:DescribeKey",
                "kms:GetKeyPolicy",
                "kms:GetKeyRotationStatus",
                "kms:ListAliases",
                "kms:ListResourceTags",
                "kms:ScheduleKeyDeletion"
            ],
            "Resource": "*"
        }
    ]
}

Click on Create a Policy and give it a name to create a custom policy.

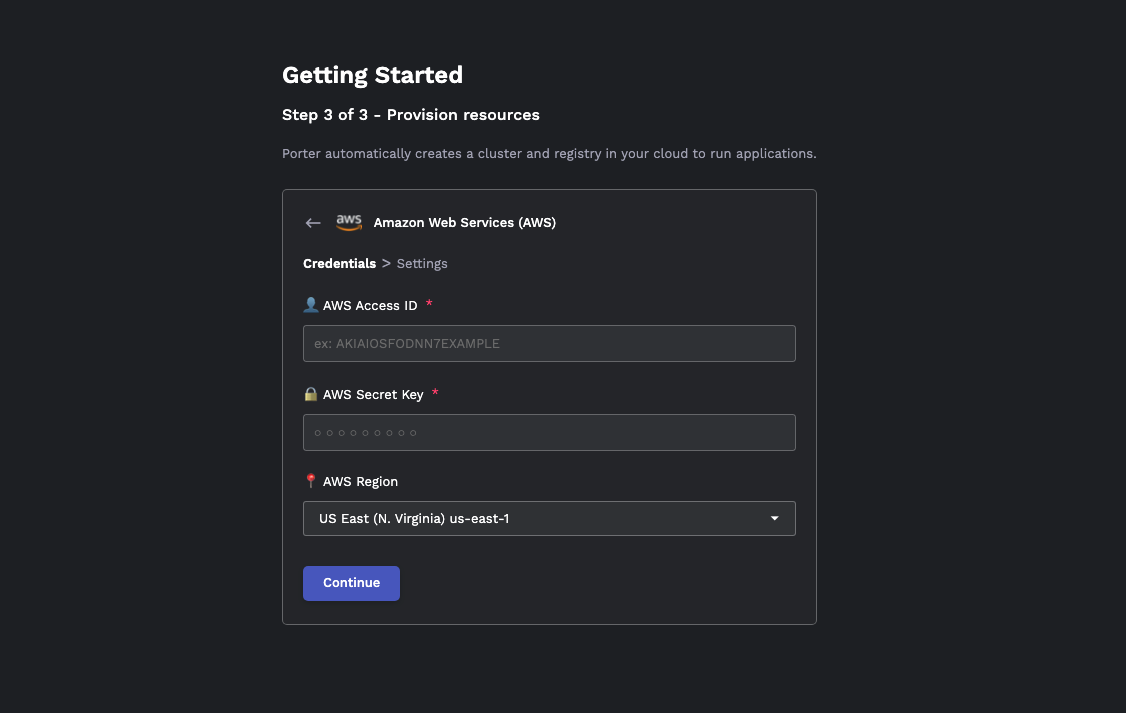

  1. After creating the user, you will be shown an Access key ID and Secret access key. Copy both of these directly into Porter's AWS Credentials form along with your preferred AWS region:

πŸ“˜

You can find your default AWS region by navigating to console.aws.amazon.com. After being automatically redirected, your region will appear at the start of the URL.

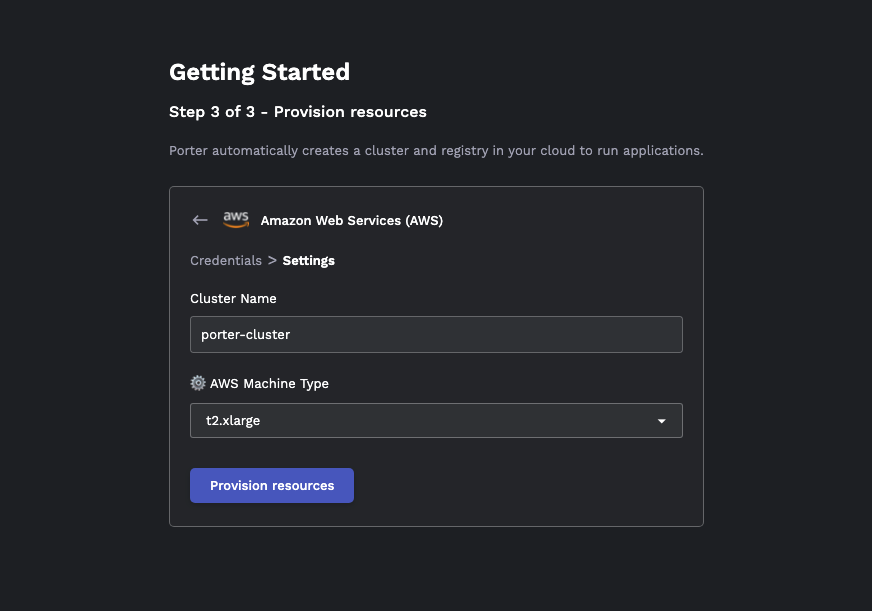

After clicking Continue, you will be prompted to name your cluster and select the instance types you want to provision your cluster with. If you are uncertain about which instance type to select, please see this answer.

Once you click Provision Resources, Porter will install all the requisite resources in your AWS account using the IAM credentials you have created. This may take up to 30 minutes.

Deleting Provisioned Resources

🚧

AWS Deletion Instability

Deleting resources on AWS via Porter may result in dangling resources. After clicking delete, please make sure to check your AWS console to see if all resources have properly been removed. You can remove any dangling resources via either the AWS console or the CLI.

Because it is difficult to keep track of all the resources created by Porter, we recommend that you delete all provisioned resources through Porter. This will ensure that you do not get charged on AWS for lingering resources.

To delete resources, click on Cluster Settings from the Cluster Dashboard.

Delete clusterDelete cluster

Click Delete Cluster to remove the cluster from Porter and delete resources in your AWS console. It may take up to 30 minutes for these resources to be deleted from your AWS console.

Note that you can only delete cluster resources that have been provisioned via Porter.

Delete cluster confirmationDelete cluster confirmation

For a guide on how to delete the dangling resources, see Deleting Dangling Resources.
